Applications
Can be used both with and without impactInstallation of doors and windowsImpact drilling in masonry and brick
Features

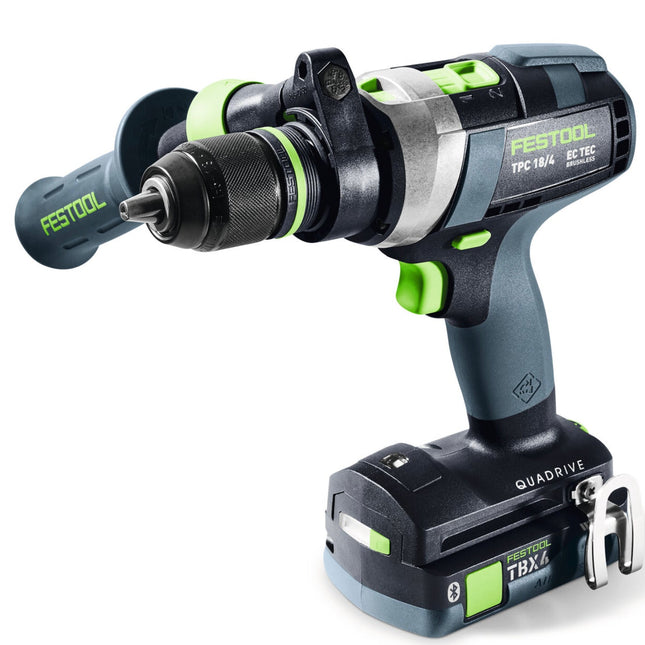

Powerful. Flexible. Featuring 4 gears for every task—with the best gear-shifting concept ever. Equally effective in wood and metal: the TPC handles demanding jobs with ease and is exceptionally robust and durable, thanks to its brushless EC-TEC motor. A wide range of perfectly matched accessories makes the QUADRIVE an unrivaled drill/driver for a multitude of applications. And what about the dangerous twisting motion your wrist might experience if the tool suddenly jams? Our intelligent KickbackStop minimizes that risk. Try it out—the best drill/driver Festool has ever built!From high-torque to high-speed: with its 4 gears, it delivers power in the lower ranges and speed in the higher ones.The difference between the TDC and the TPC? In addition to its 4 gears, the TPC also features an impact drilling function for masonry.Maximum performance: powered by the robust, brushless, and highly durable EC-TEC motor.Built to last: a rugged, four-speed all-metal gearbox.4 gears for every task: from screwdriving with 50 Nm of torque in 1st gear, to precision drilling at 3,600 rpm in 4th gear.Versatile: the FastFix system allows for quick, tool-free switching between drilling, screwdriving, and angle drilling/screwdriving applications.Includes a depth stop and an off-set (eccentric) chuck for precise depth control and screwdriving close to edges.Flexible battery system: for high-performance needs, the 4.0 Ah Li-HighPower battery offers an ideal balance of power, compact size, and low weight. For even more demanding drilling and screwdriving tasks, the 5.2 Ah battery is the perfect choice. Fully covered: naturally, Motek’s Festool warranty also applies to the batteries.
Supplied in a SYS3 M 187 Systainer, including 2 x 4.0 Ah Li-HighPower battery packs, a TCL 6 charger, a CENTROTEC chuck, a CENTROTEC BH 60 CE-imp bit holder, a FastFix keyless chuck (KC 13-1/2-MMFP), a PZ 2 screwdriver bit, a belt clip, and an additional side handle.
Specifications
Brand nameBattery capacity (Ah)4.0Low battery indicatorYesChuck typeKeylessDrilling capacity in masonry (mm)10Drilling capacity in wood (mm)70Torque setting, 1st gear (Nm)2–20Torque setting, 2nd gear (Nm)2–20Max. torque, hard material (Nm)75Max. torque, soft material (Nm)50Hammer drill functionYesMax. impact rate (bpm)57,600Drilling capacity in steel (mm)13Number of batteries2Battery typeLi-IonVoltage (V)18Sound power level LwA (dB)84Sound pressure level LpA (dB)76Vibration uncertainty K (m/s²)1.5Number of gears4Brushless motorYesPower sourceBatteryFestool SERVICE all-inclusiveYesLED lightYesMOTEK Fleet ManagementYesNo-load speed (rpm)0–3600No-load speed, 1st gear (rpm)500No-load speed, 2nd gear (rpm)800No-load speed, 3rd gear (rpm)2350No-load speed, 4th gear (rpm)3600Weight without battery (kg)1.2
