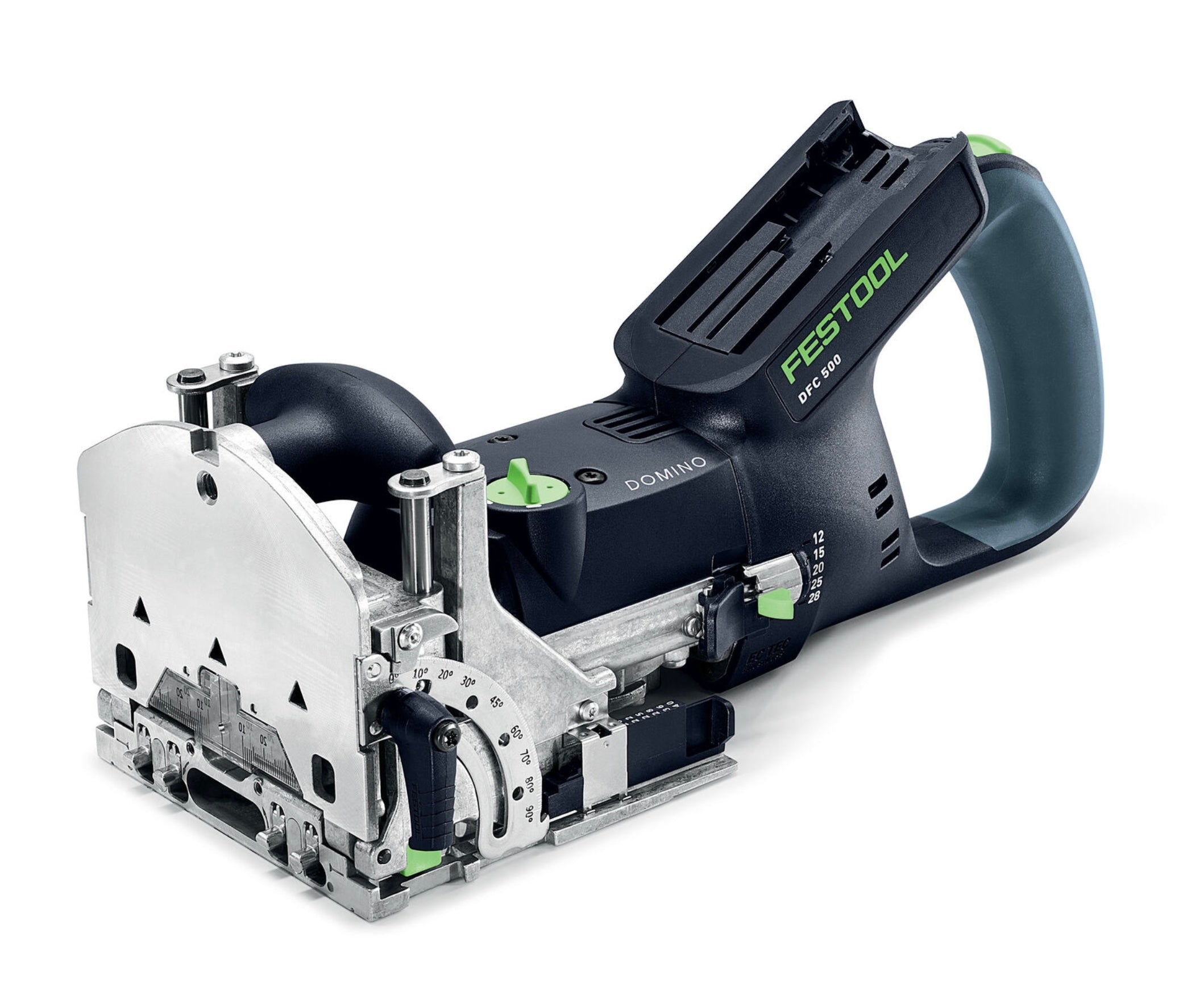

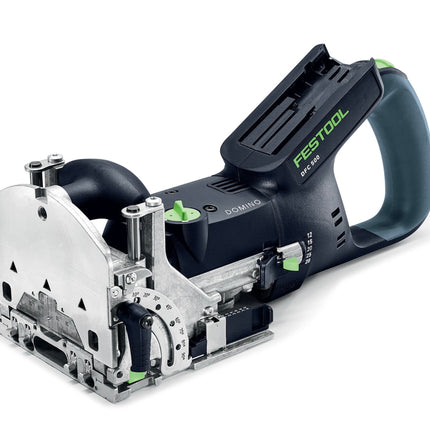

Precise, stable, and versatile joints: cordless DOMINO
Applications

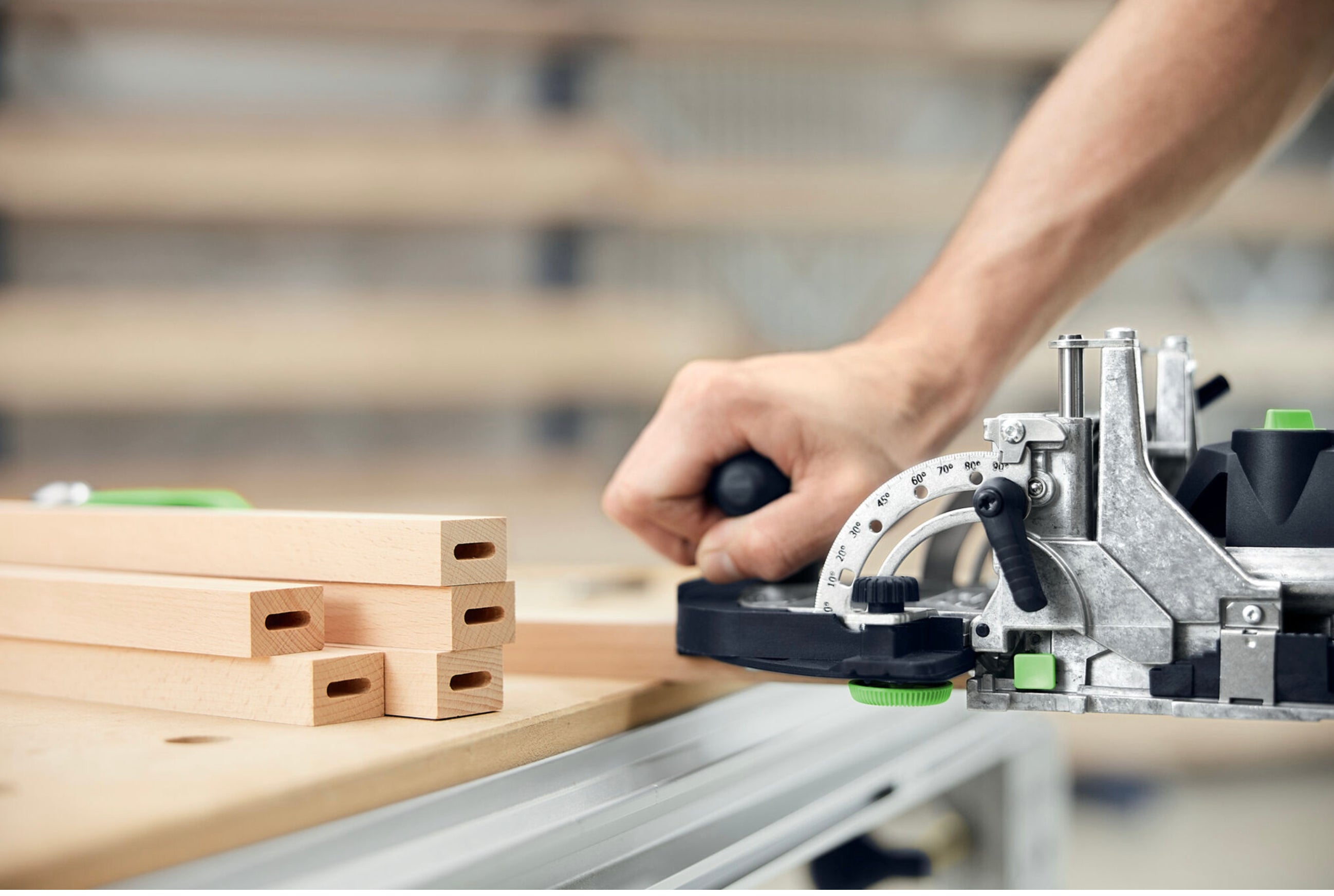

Solid wood frame and frame connections

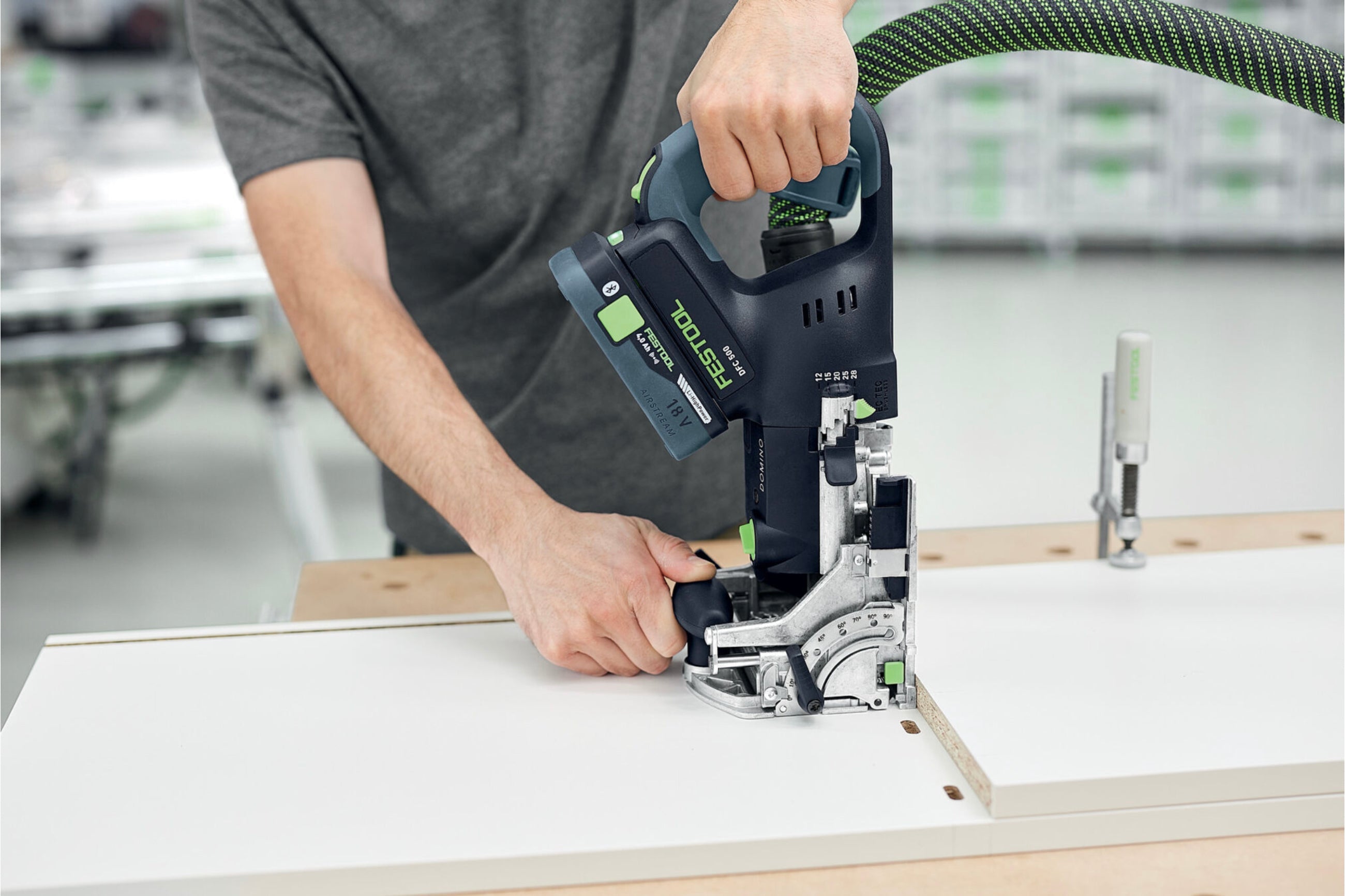

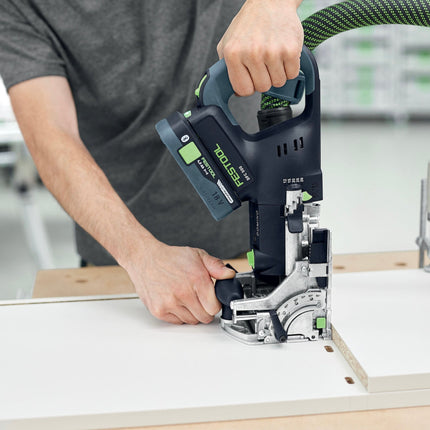

Panel connections using various panel materials
Rotation-proof connections, even with small cross-sections
Create stable mitre joints
Detachable corner joints with DOMINO

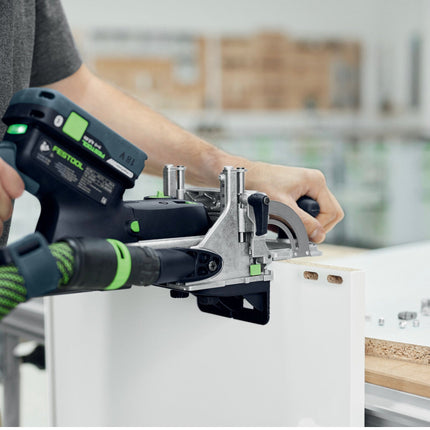

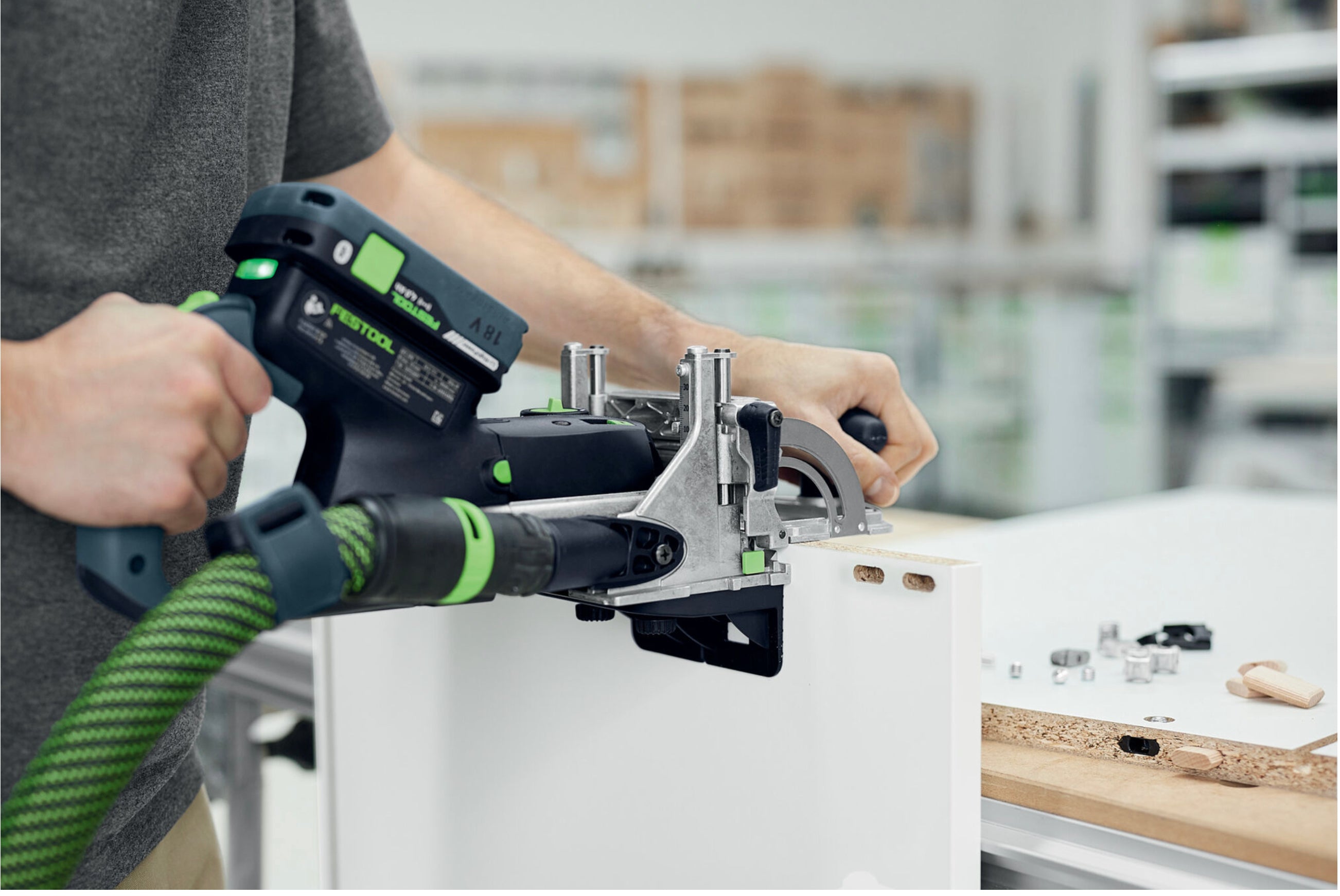

Joining thin workpieces from 12 mm

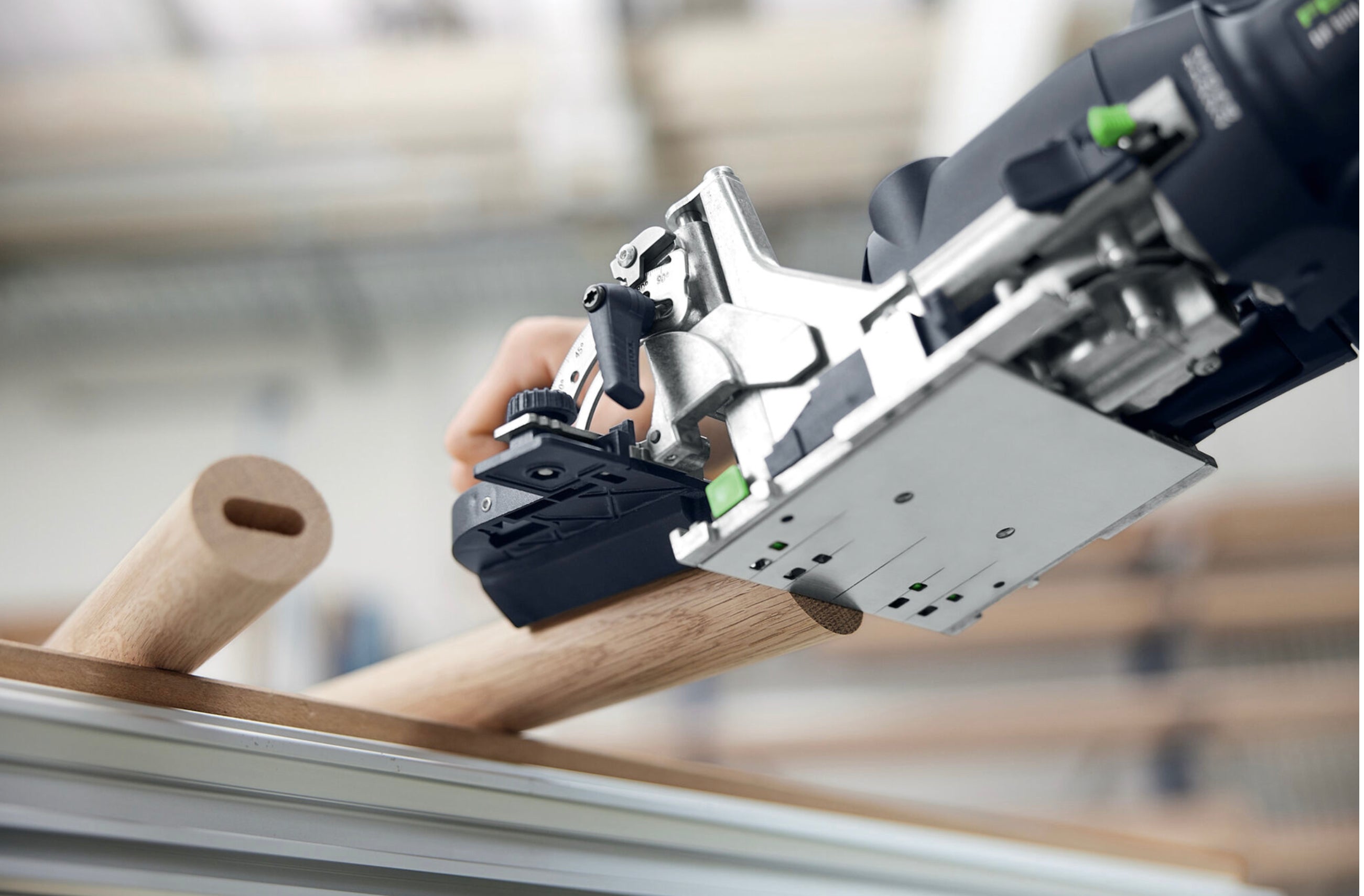

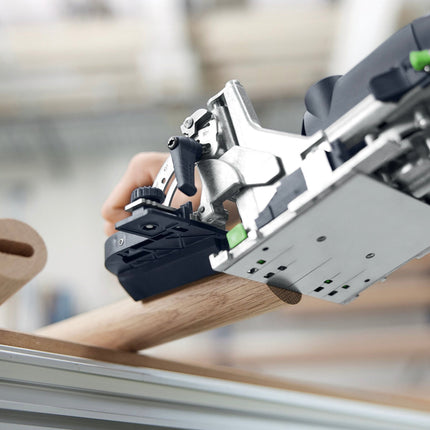

Round profile joints using the round rod stop
Features
Every type of wood joint has its advantages. The DOMINO joining system—comprising a specialized router and DOMINO dowels—combines all these benefits. The unique pendulum routing motion of the DOMINO tool creates precise, twist-proof elongated holes. The DOMINO dowel combines the stability of traditional dowels with the flexibility of biscuits. It is perfect for both intricate and heavy-duty workpieces, for use indoors and outdoors. The cordless version, featuring an ergonomic handle, allows for comfortable, cable-free operation.

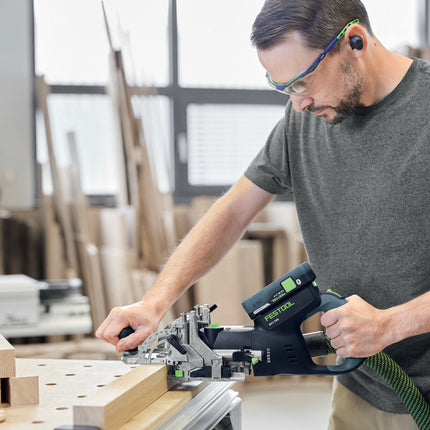

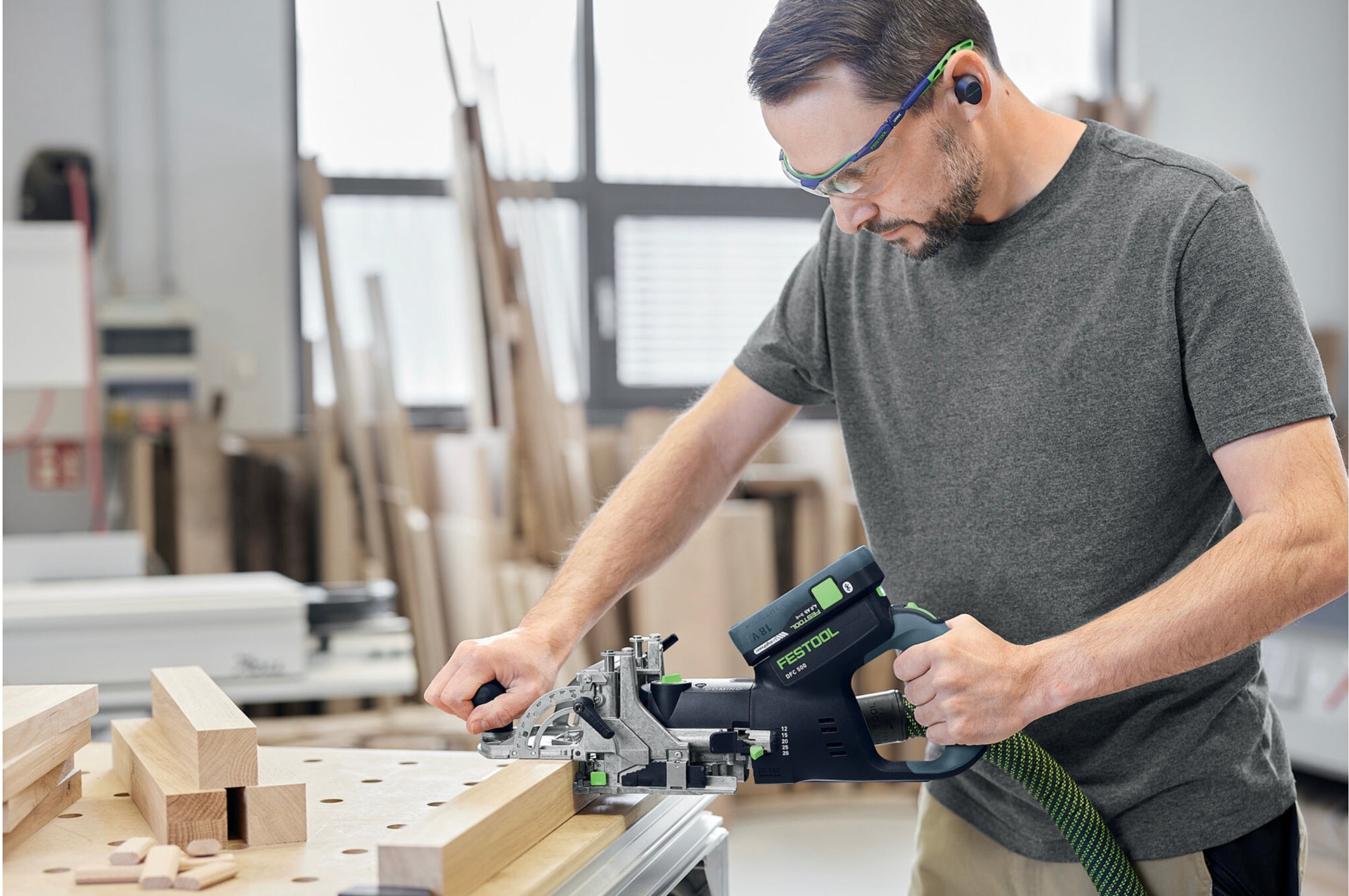

Independent: 100% mobile thanks to battery power—in the workshop and on the job site.
Precise: Unique pendulum routing principle for accurate, effortless work.

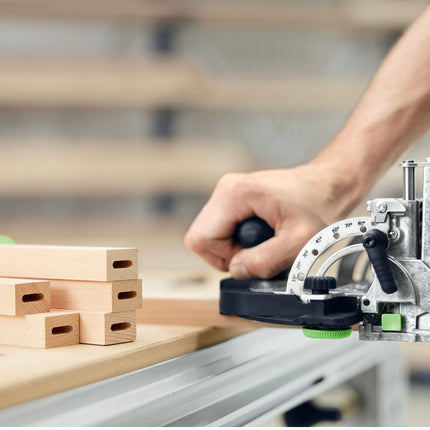

Fast and easy: Integrated stop pins for repeatable dowel positioning.
Stable: Highly stable, twist-proof joints thanks to the special shape of the DOMINO dowel.
Versatile: DOMINO dowels are available in various sizes (from 4 x 20 mm to 10 x 50 mm) and two wood types for indoor and outdoor use.
Tailored: Routing depths are optimally matched to dowel lengths and panel thicknesses.
Flexible: DOMINO joints for frames and furniture create stable structures that can also be disassembled.
System: Accessories are compatible with the entire DOMINO system.

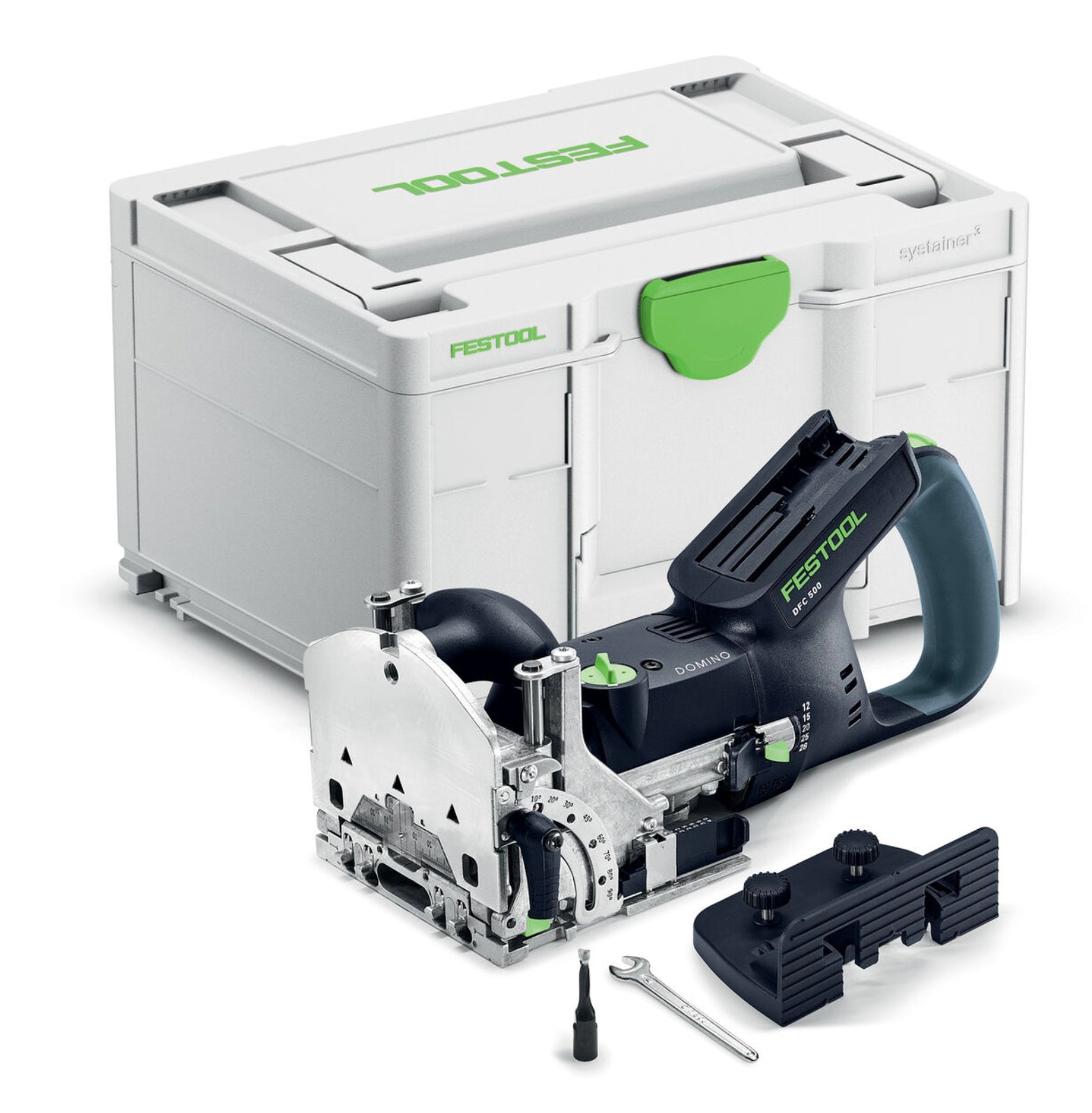

Supplied in SYS3 M 237 with 5 mm router bit, ZA-DF 500/700 angle stop, and 8 mm open-ended wrench.
Supplied without battery and charger.
Specifications
Brand name
FESTOOL
Routing depth stops (mm)
12, 15, 20, 25, 28
Max. cutter diameter (mm)
10
Max. routing depth (mm)
28
Routing height adjustment (mm)
5-30
Cutter Ø (mm)
4, 5, 6, 8, 10
Routing angle (degrees)
0-90
Batteries (qty)
0
Battery type
Li-Ion
Voltage (V)18
Sound power level LwA (dB)98
Sound pressure level LpA (dB)87
3-axis vibration value, ah (m/s²)2.5
Power source
Battery
No-load speed (rpm)
18,500
Dust extraction connection Ø (mm)
27
Weight without battery (kg)
3.4
Machine type
Router
