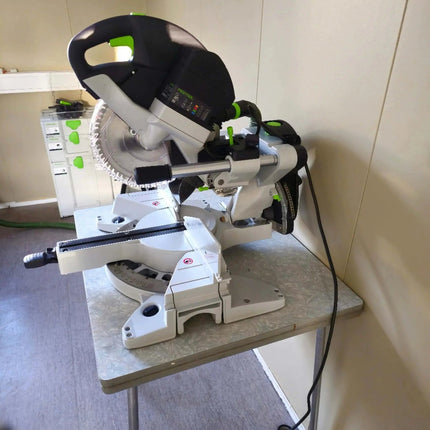

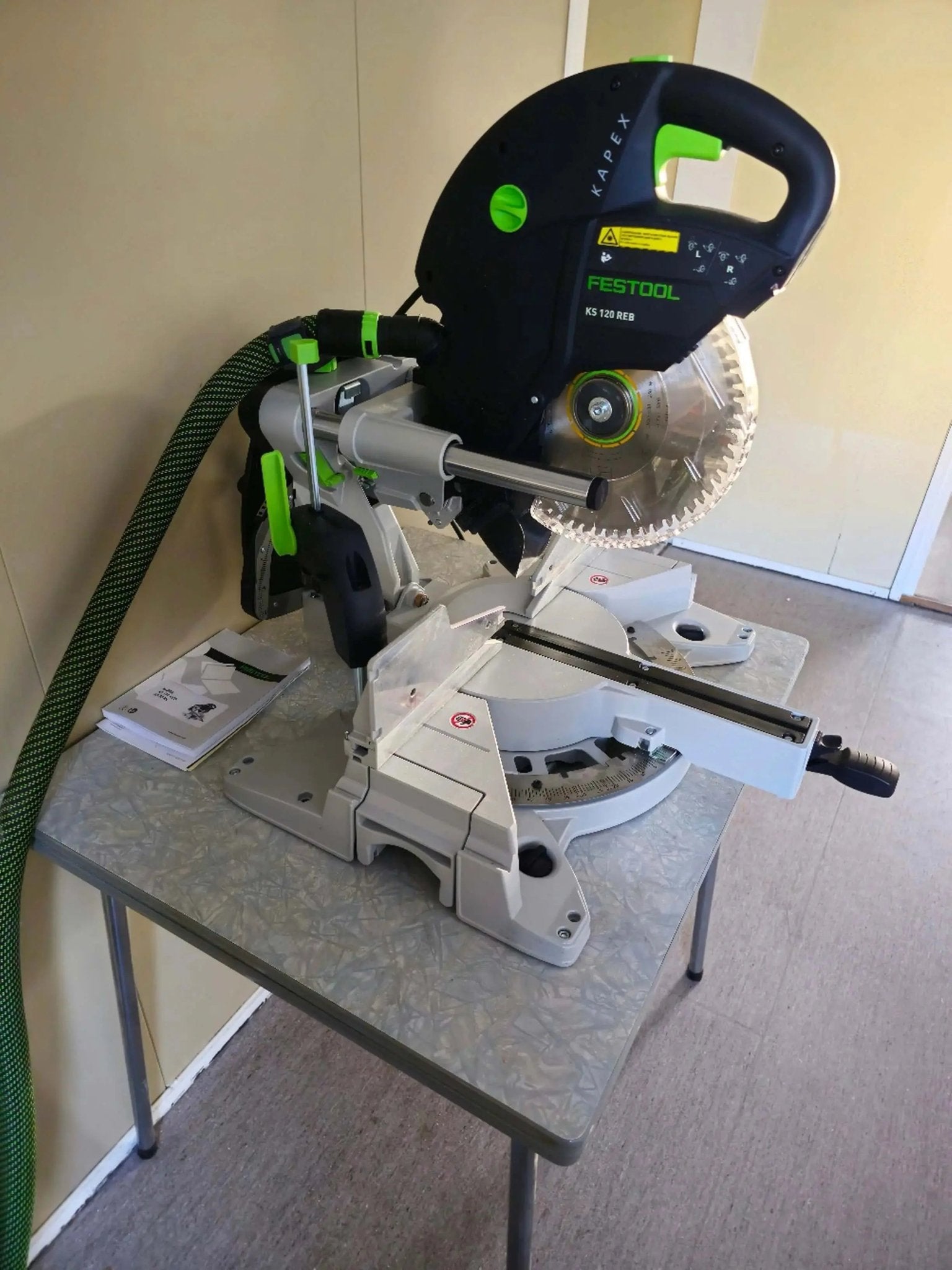

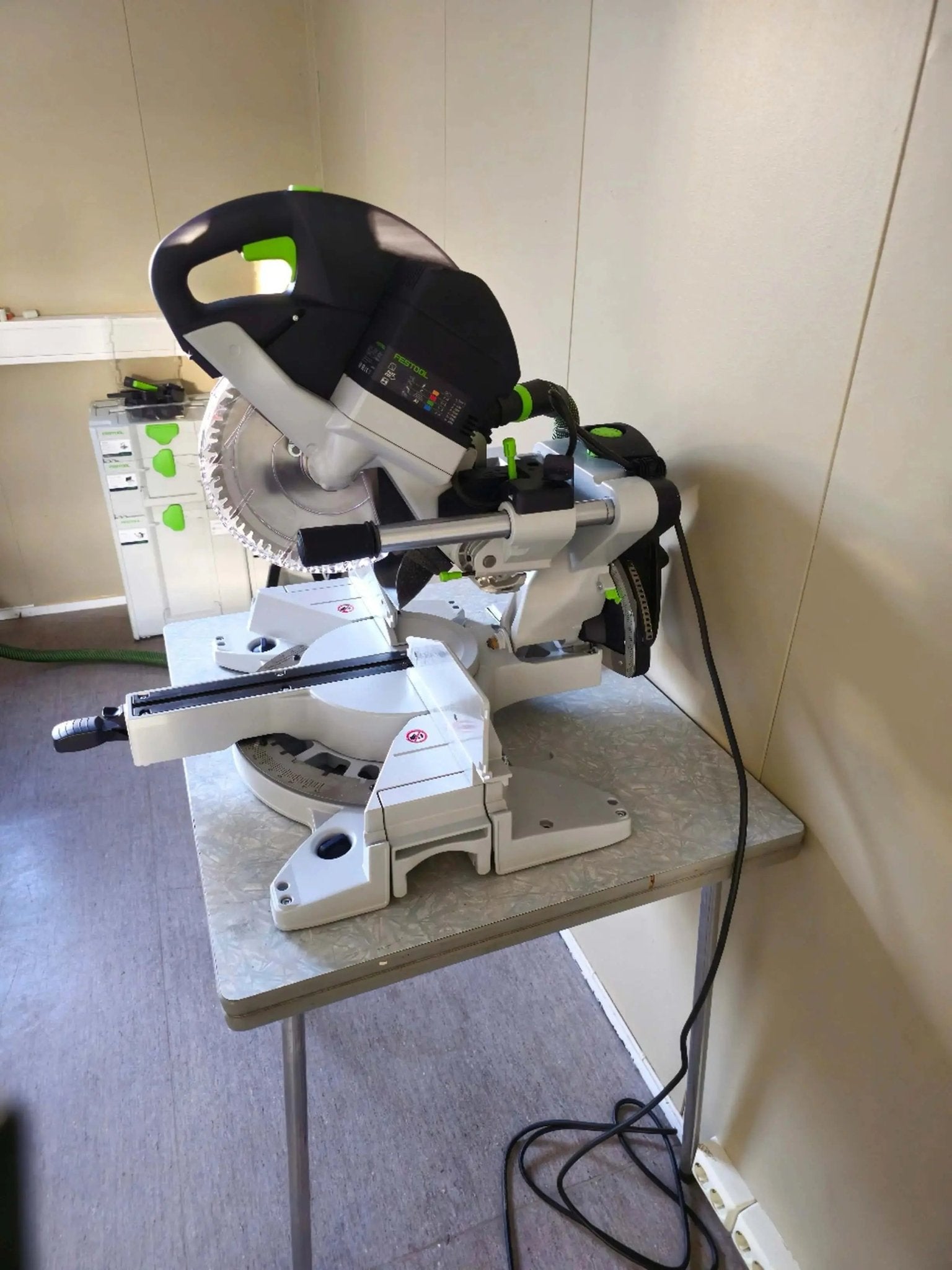

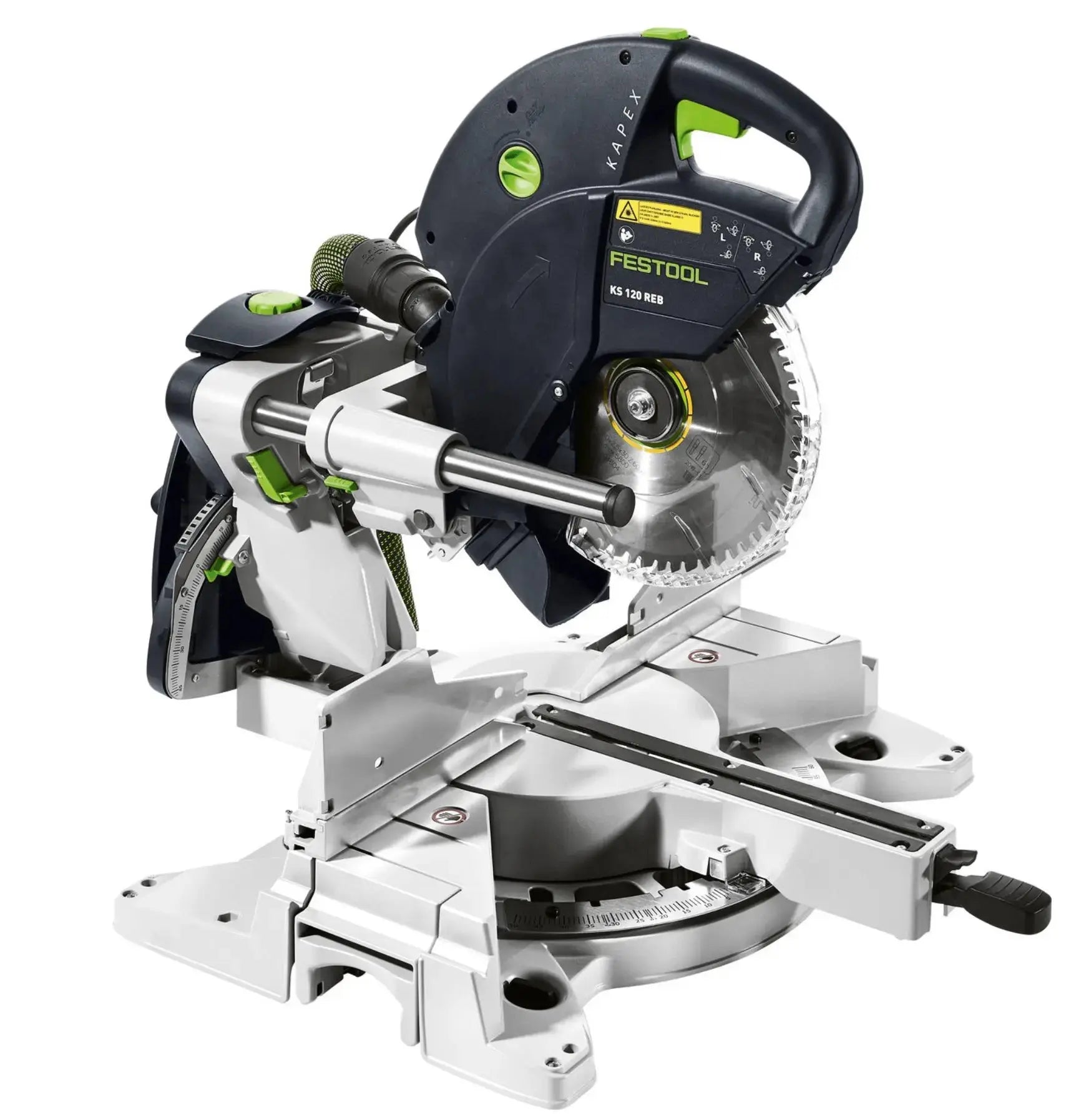

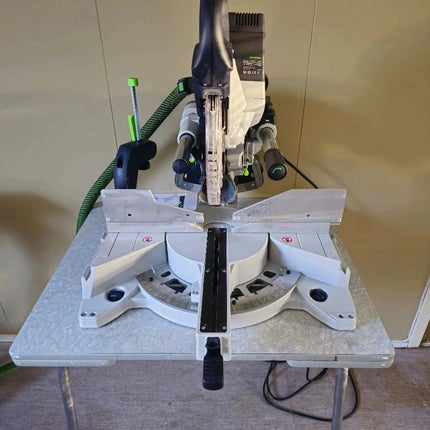

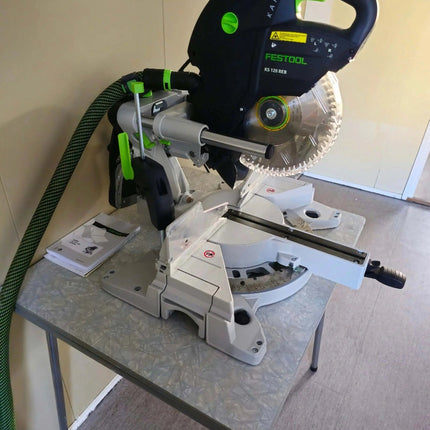

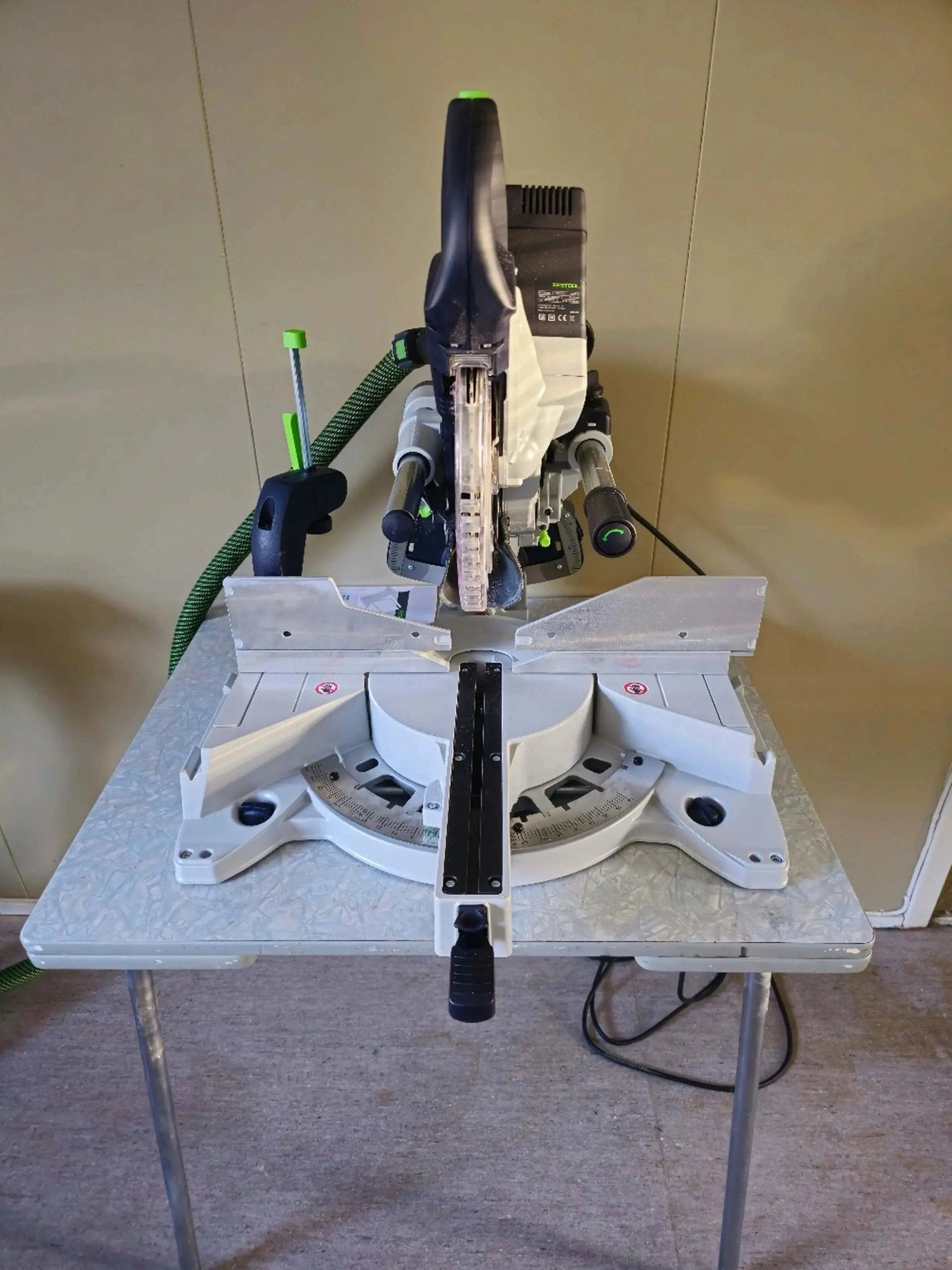

Festool KAPEX KS 120 REB Crosscut/Miter Saw
AREAS OF USE
Cutting and mitring wood, plastic and aluminum
Cutting wood up to 305 x 88 mm
Adjusting hollow wedge strips up to 168 mm in the "original wall position"
CHARACTERISTICS

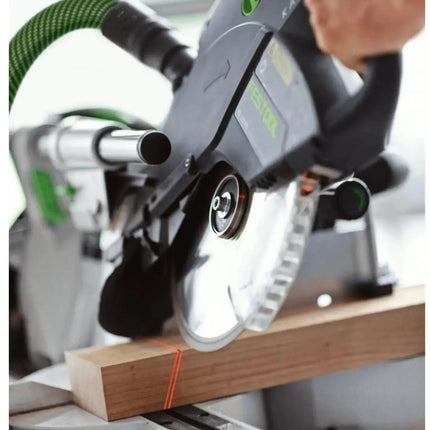

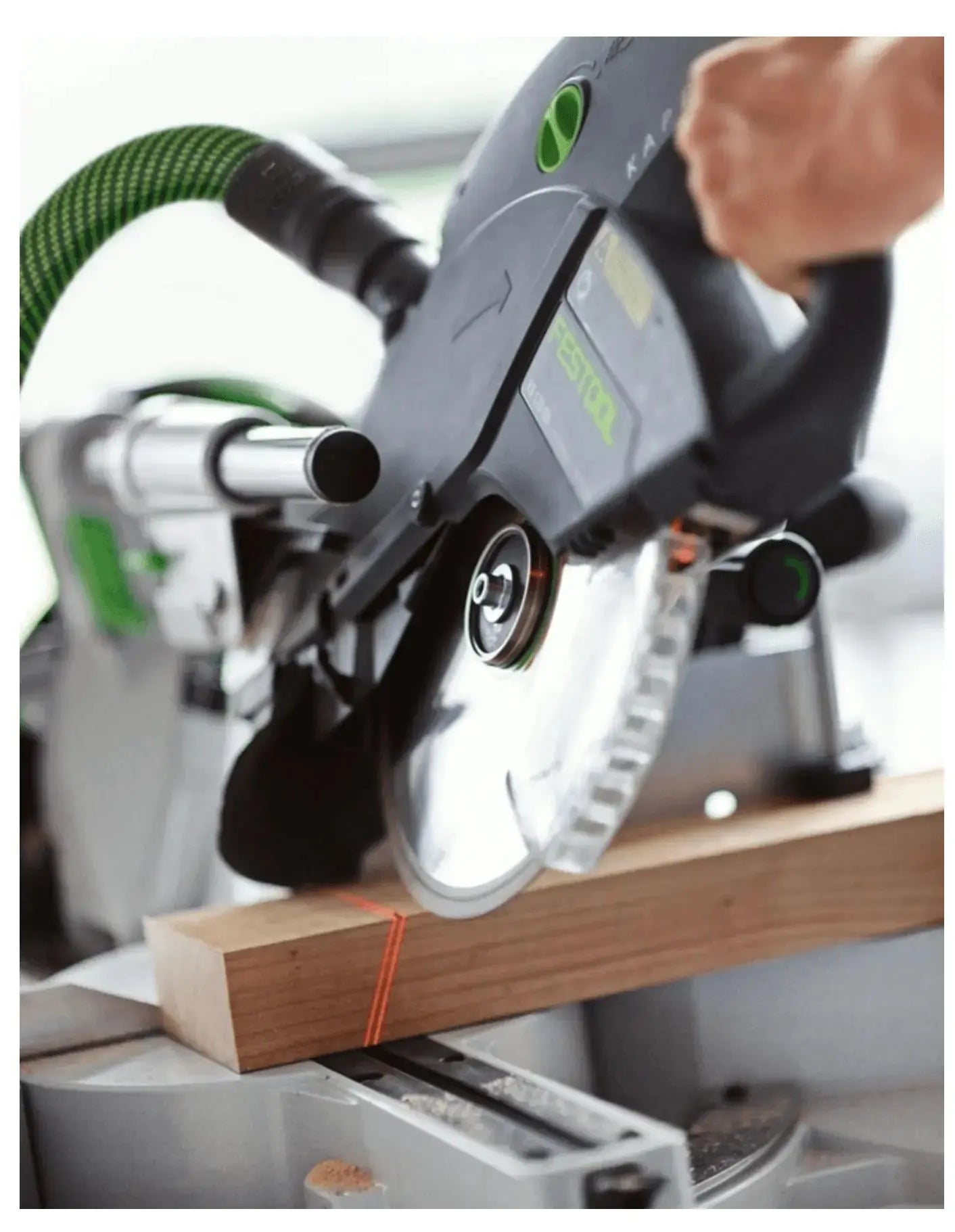

Double line laser that shows the exact width of the saw cut.
Extendable table - for better support of longer workpieces
Adjustable angle for easy transfer of angles to the fence.
Simple and precise fine adjustment of the inclination angle.
Double column guide with double ball bearings for outstanding precision
Integrated special position for cutting depth up to max. 120 mm
Adjustable speed, soft start, quick brake and overload protection.

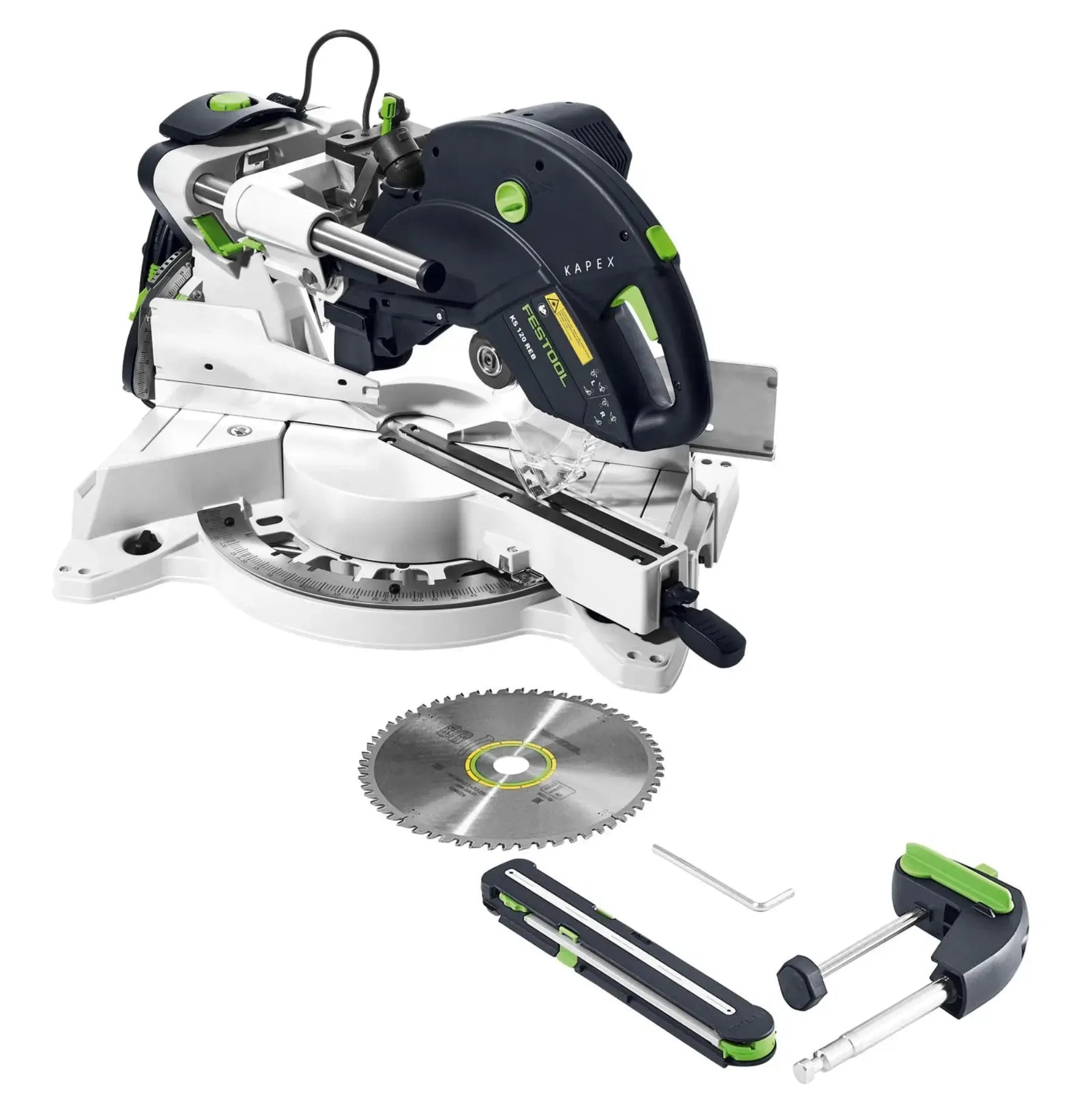

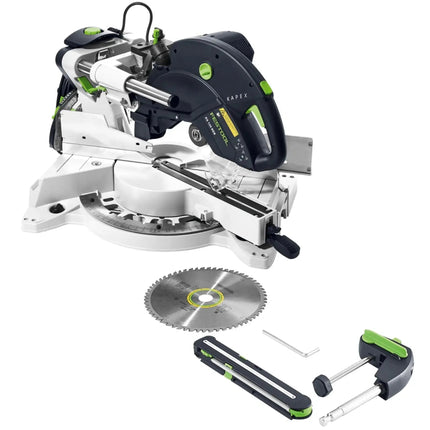

Supplied with: saw blade HM 260x2.5x30 W60, angle SM-KS, clamp KL-KS 120 and operating tools.
SPECIFICATIONS
Brand name FESTOOL
Table height, saw mounted on stand (mm)900
Miter angle right (degrees)60
Miter angle left (degrees)50
Tilt angle right (degrees)47
Tilt angle left (degrees)47
Hole guide diagonal cut 45°/90° (mm)168
Cutting capacity 45°/45° right (mm)215x35
Cutting capacity 45°/90° (mm)215x88
Cutting capacity 45°/45° left (mm)215x55
Cutting capacity 90°/90° (mm)305x88
Cutting capacity special 45°/90° right (mm)20x120
Cutting capacity special 45°/90° left (mm)40x120
Power (W)1600
Voltage (V)230
Sound power uncertainty KwA (dB)3
Sound power level LwA (dB)100
Sound pressure level LpA (dB)88
Energy source. Electricity
No-load speed (rpm)1400-3400
Dust extraction connection Ø (mm)27
Stepless speed control
Weight (kg)23.2
Dimensions - LxWxH (mm)709x504x488
