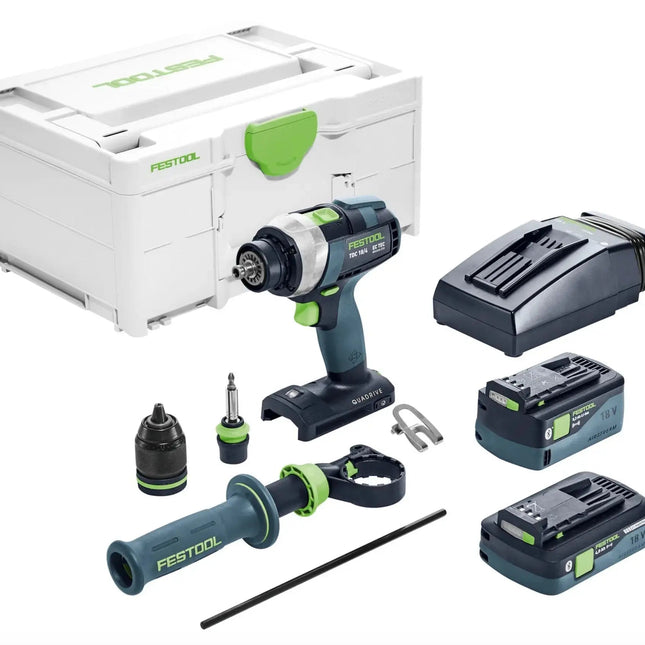

Festool cordless drill TDC 18/4 5.0/4.0-Plus
In remote warehouse - Usually delivered within 8 days
AREAS OF USE
Installation of doors and windowsDrilling and screwdriving in wood, metal and plasticScrewdriving in wood up to 10x300 mmDrilling up to 70 mm in wood with Forstner bitsCHARACTERISTICSPowerful. Flexible. With 4 gears for every task. With the best gear shifting concept ever. Just as good in wood as in metal: TDC handles tough jobs and is extremely robust and durable with its brushless EC-TEC motor. The numerous and perfectly matched accessories make the QUADRIVE an unrivalled drill/screwdriver for a wide range of applications. What about the dangerous twisting motion of the wrist if the tool suddenly jams? Our clever Kickback stop minimises the risk of this happening. Try it: the best drill/screwdriver Festool has ever made!From strong to fast. With its 4 gears, the power is in the lower gears and the speed is in the higher gears.Maximum power: with the powerful, brushless and therefore durable EC-TEC motorRobust: wear-resistant four-speed metal gearbox4 gears for all working situations: from screwdriving with 50 Nm torque in 1st gear to precision drilling with 3600 rpm in 4th gearVersatile: with the FastFix system you can quickly and tool-free switch between drilling, screwdriving, angle drilling and angle screwdrivingWith the depth stop and eccentric chuck you can also screw with precise depth control and close to the edgeFlexible battery system: when high power is required, the 4.0 Ah Li-High Power battery is used, an ideal combination of power, compact format and lightness. If even more power is required, the 5.0 Ah battery is the right choice for heavy drilling and screwdriving work. Fully covered: Needless to say, Motek's Festool warranty also applies to the batteries.Supplied in SYS3 M 187 with Battery BP 18 Li 4.0 HPC-ASI, Battery BP 18 Li 5.0 ASI, Charger TCL 6, CENTROTEC chuck, CENTROTEC bit holder BH 60 CE-imp, FastFix quick chuck KC 13-1/2-MMFP, Bits PZ 2 and extra side handleSPECIFICATIONSBrand name FESTOOLBattery capacity (Ah)4.0/5.0Low battery level indicationDrill chuck type Quick-changeDrill chuck clamping range (mm)1.5-13Drilling capacity wood (mm)70Torque setting 1st gear (Nm)2-20Torque setting 2nd gear (Nm)2-20Max. torque hard material (Nm)75Max. torque soft material (Nm)50Drilling capacity steel (mm)13Batteries (pcs.)2Battery type Li-IonVoltage (V)18Sound power level LwA (dB)84Sound pressure level LpA (dB)73Vibration value 3-axis, ah (m/s²)2.5Number of gears4Brushless motorEnergy source BatteryLED lightNo load speed (rpm)0-3600No load speed 1st gear (rpm)500No load speed 2nd gear (rpm)800No load speed 3rd gear (rpm)2350No load speed 4th gear (rpm)3600Weight with battery (kg)1.9Weight without battery (kg)1.4Dimensions - LxWxH (mm)167x74x199

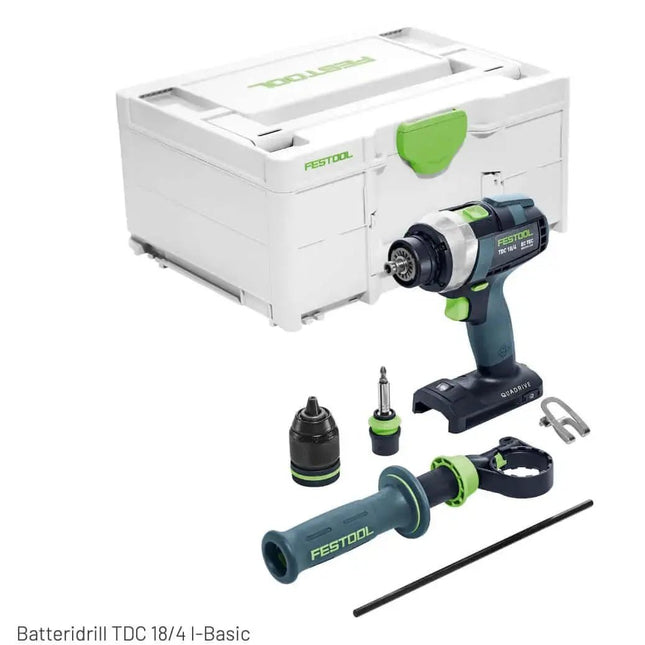

Basic Festool TDC 18/4 model is delivered without batteryAREAS OF USE
Assembling doors and windowsDrilling and screwing in wood, metal and plasticScrewing in wood up to 10x300 mmDrilling up to 70 mm in wood with Forstner bits
CHARACTERISTICSPowerful. Flexible. With 4 gears for every task. With the best gear shifting concept ever. Just as good in wood as in metal: the TDC copes with tough jobs and is extremely robust and durable with its brushless EC-TEC motor. The many and perfectly matched accessories make the QUADRIVE an unrivalled drill/screwdriver for a wide range of applications. What about the dangerous twisting movement of the wrist if the tool suddenly jams? Our clever Kickback stop minimises the risk of that happening. Try it: the best drill/screwdriver Festool has ever made!From strong to fast. With its 4 gears, the power is in the lower gears and the speed in the higher gears.Maximum power: with the powerful, brushless and therefore durable EC-TEC motorRobust: wear-resistant four-speed metal gearbox4 gears for all working situations: from screwdriving with 50 Nm torque in 1st gear to precision drilling with 3600 rpm in 4th gearVersatile: with the Fast Fix system you can quickly and tool-free switch between drilling, screwdriving, angle drilling and angle screwdrivingWith the depth stop and eccentric chuck, you can also screw with precise depth control and close to the edgeFlexible battery system: when high power is required, the 4.0 Ah Li-High Power battery is used, an ideal combination of power, compact format and lightness. If even more power is required, the 5.2 Ah battery is the right choice for heavy drilling and screwing work.
Fully covered: Needless to say, Motek's Festool warranty also applies to the batteries.Supplied in SYS3 M 187 with CENTROTEC chuck, CENTROTEC bit holder BH 60 CE-imp, Fast Fix quick-release chuck KC 13-1/2-MMFP, Bits PZ 2 and additional side handle
SPECIFICATIONSBrand name FESTOOLLow battery indicatorDrill chuck type Quick-changeDrill chuck clamping range (mm)1.5-13Drill capacity wood (mm)70Torque setting 1st gear (Nm)2-20Torque setting 2nd gear (Nm)2-20Torque max. hard material (Nm)75Torque max. soft material (Nm)50Drill capacity steel (mm)13Batteries (pcs)0Battery type Li-IonVoltage (V)18Sound power level LwA (dB)84Sound pressure level LpA (dB)73Vibration value 3-axial, ah (m/s²)2.5Number of gears4Brushless motorEnergy source BatteryLED lightNo-load speed (rpm)0-3600No-load speed 1st gear (rpm)500No load speed 2nd gear (rpm)800No load speed 3rd gear (rpm)2350No load speed 4th gear (rpm)3600Weight with battery (kg)1.9Weight without battery (kg)1.4Dimensions - LxWxH (mm)167x74x199
APPLICATIONS

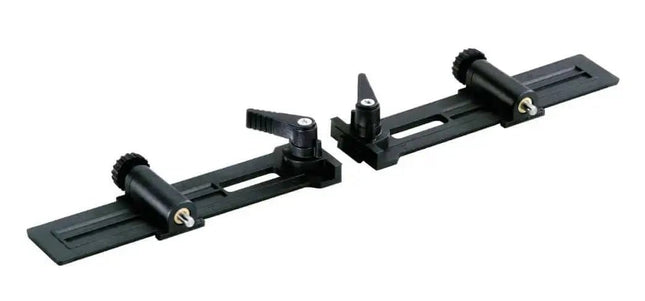

For Festool domino routers DF 500 and DF 700
FEATURES
Included in delivery: a left and right cross stop.
SPECIFICATIONSBrand name FESTOOLMachine type Router
All our prices are incl. VAT
The product's weight and dimensions do not provide free shipping.
Display model - Complete set LIKE NEW

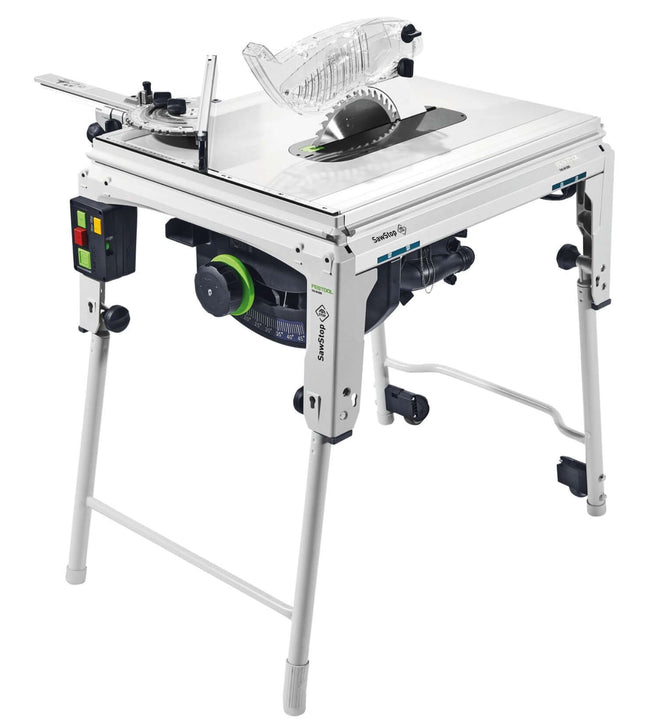

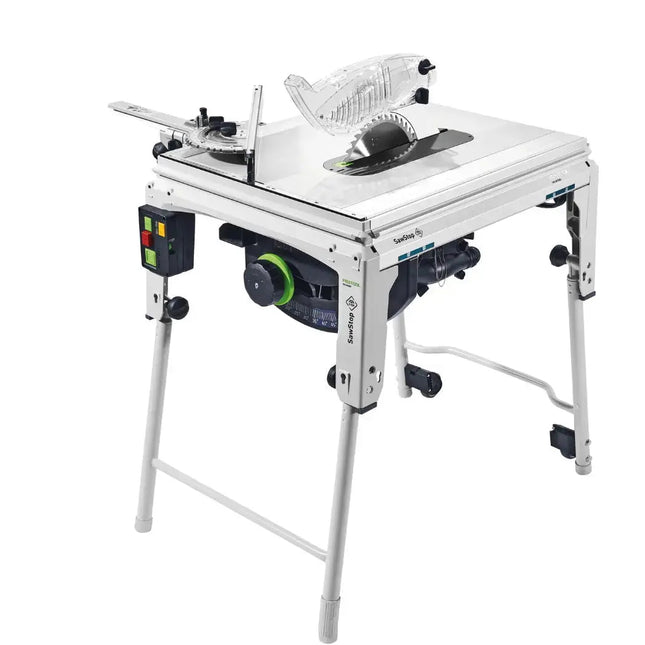

The first Festool saw with SawStop AIM technology
Complete set includes
Art. no. 32575827
Roller table Festool ST TKS 80Art. no.32575840Side table Festool VB TKS 80Art. no.32575825Extension table Festool VL TKS 80Art. no.32575826Length stop Festool LA TKS 80Art. no.32575851Cartridge Festool KT-TKS 80Art. no.32575977Saw blade Festool HM 254x2.4x30 TF80 L - LAMINATE/HPLAreas of useSawing of all wood or wood-like materials, plastics and non-conductive materials can be processed without problems.For conductive materials such as iron and non-ferrous metals, the SawStop AIM technology must be deactivated with SawStop AV, otherwise there is a risk of false triggering.Damp wood should always be tested using the test function.
Ask us for a quote
Areas of useSawing all wood or wood-like materials, plastics and non-conductive materials can be processed without problems.For conductive materials such as iron and non-ferrous metals, the SawStop AIM technology must be deactivated with SawStop AV, otherwise there is a risk of false triggering.Damp wood should always be tested using the test function.FeaturesWe protect your fingers!The first Festool saw with innovative SawStop technology for more safety when sawing. In case of skin contact, the saw blade stops immediately and disappears into the work surface - the most serious cut injuries are now a thing of the past.Less chippingLess tearing on the top side of the material during longitudinal mitre cuts by the saw blade swinging to the left. Clean cuts even on the underside of the material when using the surface guard.Flexible in useVariable working up to 80 mm cutting height and work surface that can be extended in length and width, as well as moreflexibility thanks to angle stop.Supplied with Universal saw blade HM W40, Cartridge KT-TKS 80, 3x surface guard, Angle stop, Hose set for dust extraction, Push-on, Accessory holder and Assembly tool.SpecificationsBrand name FESTOOLCutting capacity max (mm)80Blade diameter (mm)254Blade spindle Ø (mm)30Table size LxW (mm)850 x 720Table height (mm)900Table height, folded (mm)385Inclination angle (degrees)0 (-2) - 45 (+47)Cutting capacity 45° (mm)56Power (W)2200Voltage (V)230Sound power uncertainty KwA (dB)3Sound power level LwA (dB)102Sound pressure level LpA (dB)87Energy sourcePowerFestool SERVICE all-inclusiveNo-load speed (rpm)1700-3500No-load speed 1st gear (rpm)1700No-load speed 2nd gear (rpm)1900No-load speed 3rd gear (rpm)2300No-load speed 4th gear (rpm)2700No-load speed 5th gear (rpm)3100No-load speed 6th gear (rpm)3500Dust extraction connection Ø (mm)50Stepless speed controlWeight (kg)37Dimensions - LxWxH (mm)825x663x385
